Integrated coherent receivers
Coherent optical functions on-chip

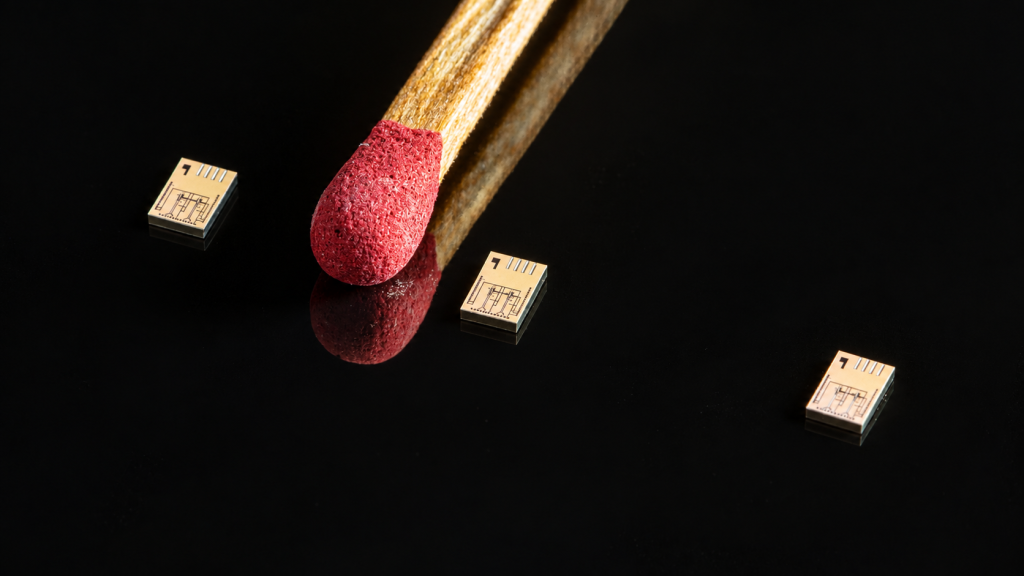

We develop silicon photonic integrated coherent receiver circuits for high-capacity laser communications. Optical couplers, an MMI hybrid, Ge photodiodes and SiGe BiCMOS electronics are brought together in a compact architecture.
In the ORIONAS programme, LEO Space Photonics and its partners demonstrated more than 100 Gb/s coherent detection of single-polarization QPSK signals.
patented technology
Patented integrated coherent receiver architecture
LEO Space Photonics is the assignee of US Patent 12,598,003 B2, covering a coherent receiver photonic integrated circuit with a single multimode interference (MMI) optical hybrid, non-intersecting optical paths and uniform electrical connections.
optical hybrid
Single MMI coupler
A single MMI coupler acts as the 90-degree optical hybrid for mixing the received signal with a local oscillator.
WAVEGUIDE ROUTING
Non-intersecting paths
Four waveguides route hybrid outputs to four photodetectors without crossings.
ELECTRICAL OUTPUT
Balanced detection
Four on-chip Ge photodetectors form two balanced pairs with uniform electrical paths leading to the TIA circuits.
start a conversation
Discuss your optical link.
Tell us about your data rate, operating environment and integration requirements.
