LEO SPACE PHOTONICS
LEO-OTRx-NPO

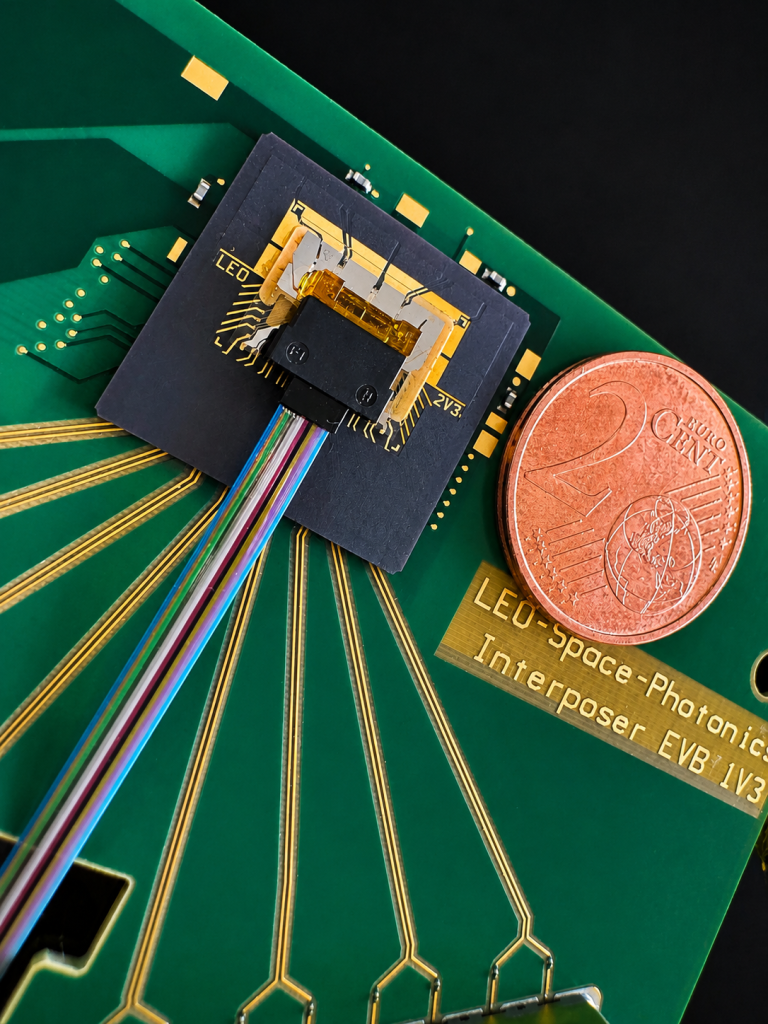

Compact, solder-reflowable VCSEL optical engine.
A 112 Gb/s (4 × 28 Gb/s) optical transceiver with four transmit and four receive lanes, combining GaAs VCSEL and photodiode arrays with our custom SiGe BiCMOS driver and TIA chipset.
designed for integration
Optical connectivity close to the electronics.

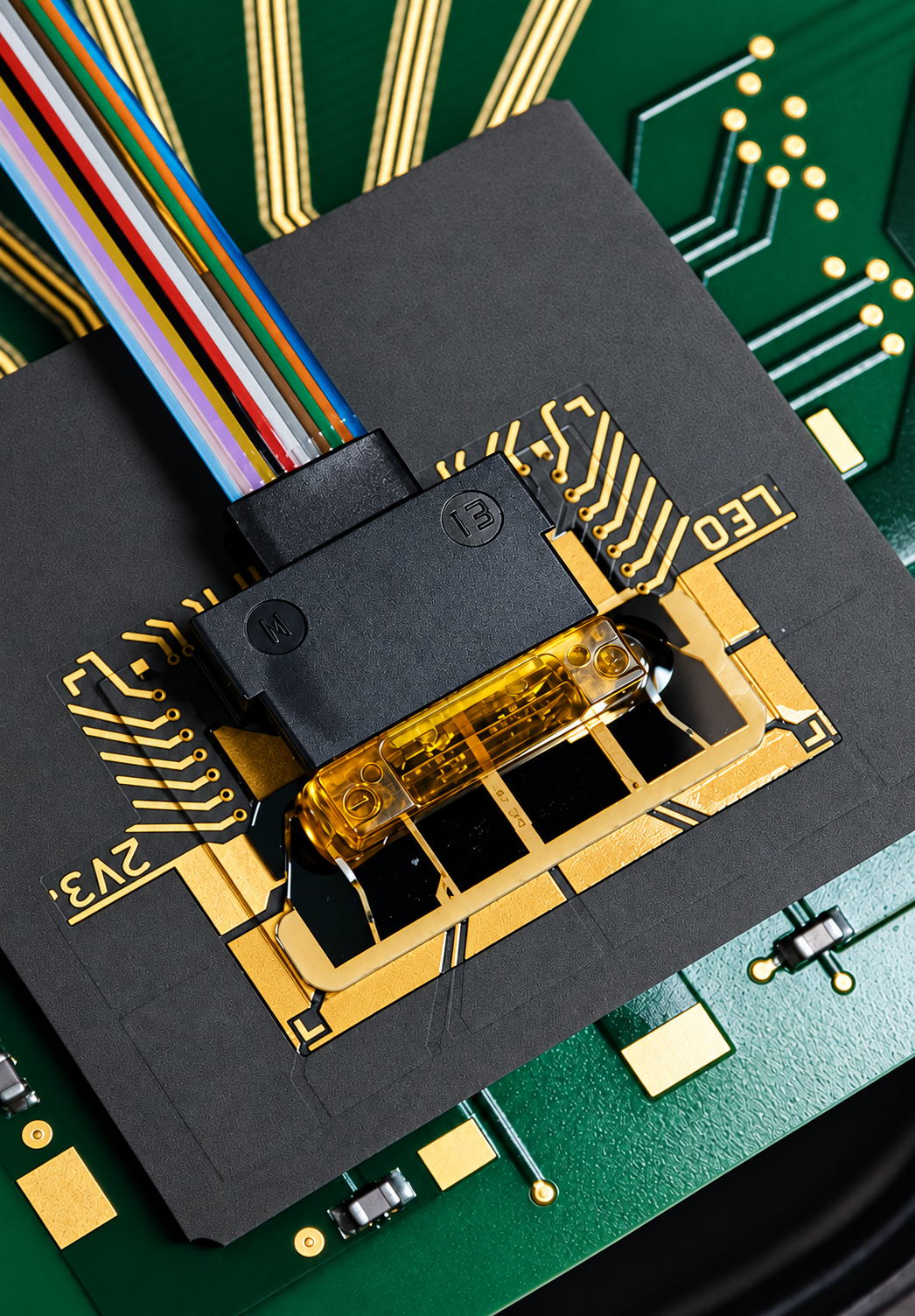

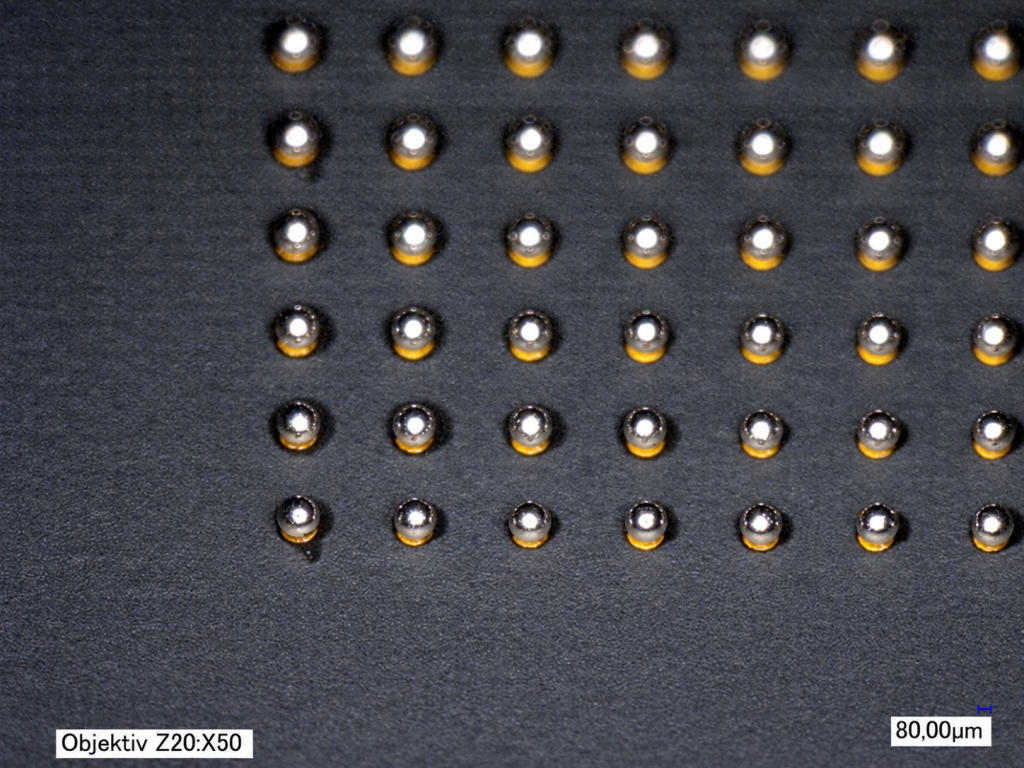

The BGA interface allows solder reflow on the host board, allowing placement close to the host ASIC or FPGA. A removable low-profile MT optical connector mates to the molded lens assembly.
Potential applications include intra-satellite links, AI and HPC interconnects, harsh-environment links, data-center optical networking and automotive optical links.
LEO-OTRx-NPO
Specifications
Published figures for LEO-OTRx-NPO optical engine. Contact us to discuss further performance, availability and qualification status for your configuration.
4 Tx + 4 Rx
Parallel optical lanes
112 Gb/s
4 x 28 Gb/s nominal rate
25 - 32 Gb/s
NRZ OOK per lane
850 nm
GaAs VCSEL / PD wavelength
3.9 pJ/bit
Power efficiency at 4x 28 Gb/s
< 1g
Total assembly mass
3.38 cm²
19.2 x 17.6 mm footprint
2.84 mm
Assembly height
start a conversation
Discuss your optical link.
Tell us about your data rate, operating environment and integration requirements.
